Applications: Altimeter, barometers; TMAP; TPMS/handheld tire pressure gauge and handheld pressure gauge; Absolute pressure control system; engine control; atmospheric pressure measurement; Air pressure gauge, auxiliary GPS navigation, weather forecast, mdedical monitoring, and etc.
Features
Small size
Low cost
MEMS technology
Absolute pressure type
-40℃~125℃ working temperature
Measuring range 0~150kPa...700kPa
High reliability, good stability, low long-term drift
Fluorosilicone protection effectively avoids the influence of woisture, oil, weak acids and alkalis
Main Applications
Altimeter, barometers; TMAP; TPMS/handheld tire pressure gauge and handheld pressure gauge; Absolute pressure control system; engine control; atmospheric pressure measurement; Air pressure gauge, auxiliary GPS navigation, weather forecast, mdedical monitoring, and etc.
Specifications
Model | Measuring Range | Package Form | Pressure Type | Zero Output (mV) | Full Scale | Nonlinear(%FS) |
MSPSA1010150KP | 0-150kPa | SOP8 | Absolute Pressure | -15~15 | 70~130 | -0.3~0.3 |
MSPSA1010350KP | 0-350kPa | SOP8 | Absolute Pressure | -15~15 | 70~130 | -0.3~0.3 |
MSPSA1010700KP | 0-700kPa | SOP8 | Absolute Pressure | -15~15 | 70~130 | -0.3~0.3 |
More pressure ranges can be customized.

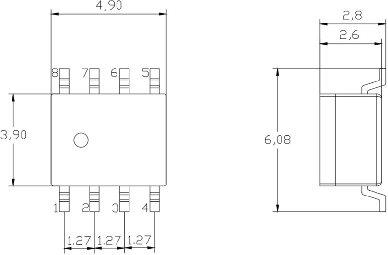

Dimensions and Pin Definitions
Pin Number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
Pin Definition 1 | NC | Vo+ | NC | GND | NC | Vo- | NC | VS+- |
