Applications: Electronic sphygmomanometers, ventilators, axygen concentrators and other medical dields; automotive electronics fields such as tire pressure monitors and MAPS; fitness equipmet fields such as massage chairs, massagers and air beds; vacuum cleaners, washing machines, coffee machines, pressure gauges, and etc.

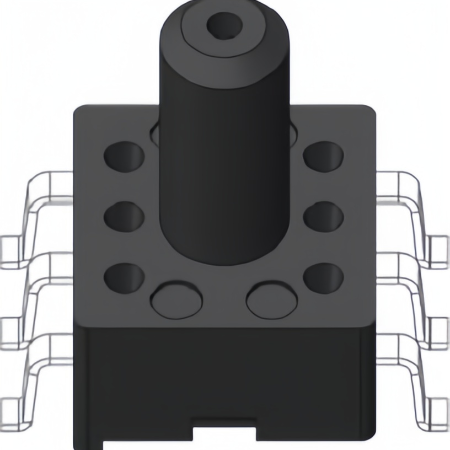

Features
Measuring range: 0~10kPa...700kP
Gauge pressure type
Suitable for non-corrosive gases
MEMS technology
SOP packaging form
Chip back pressure
Main Applications
Electronic sphygmomanometers, ventilators, axygen concentrators and other medical dields; automotive electronics fields such as tire pressure monitors and MAPS; fitness equipmet fields such as massage chairs, massagers and air beds; vacuum cleaners, washing machines, coffee machines, pressure gauges, and etc.
Specifications
Model | Measuring Range | Package Form | Pressure Type | Zero Output (mV) | Full Scale | Nonlinear(%FS) |
MSPSG1010010KP | 0-10kPa | SOP6 | Gauge | -15~15 | 35~55 | -0.3~0.3 |
MSPSG1010040KP | 0-40kPa | SOP6 | Gauge | -15~15 | 60~90 | -0.3~0.3 |
MSPSG1010100KP | 0-100kPa | SOP6 | Gauge | -15~15 | 70~110 | -0.3~0.3 |
MSPSG1010200KP | 0-200kPa | SOP6 | Gauge | -15~15 | 70~110 | -0.3~0.3 |
MSPSG1010700KP | 0-700kPa | SOP6 | Gauge | -15~15 | 70~110 | -0.3~0.3 |
More pressure ranges and media other than non-corrosive gases can be customized.

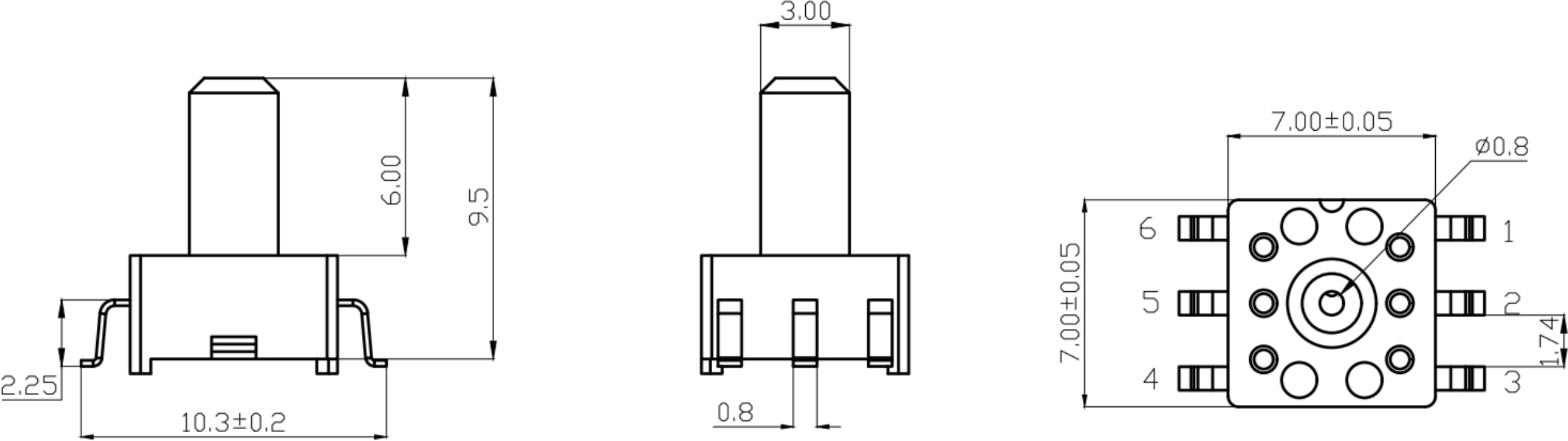

Dimensions and Pin Definitions
Pin Number | 1 | 2 | 3 | 4 | 5 | 6 |
Pin Definition 1 | Vo- | Vs+ | Vo+ | NC | GND | Vo- |
Pin Definition 2 | GND | Vo+ | Vs+ | NC | Vo- | GND |
Definition | Vs+ | GND | Vo+ | Vo- |
Definition | Power Positive | Power Negative | Positive Output | Negative Output |
