Applications: Altimeter, barometric pressure, tire pressure gauges, intake pressure measurement, air pump pressure gauge, and etc.
Features
MEMS technology
Absolute pressure type
LGA package, small size
Working temperature: -30℃~100℃
Suitable for non-corrosive gases
Measuring range: 0~150kPa...700kPa
High reliability, good stability, low long-term drift
Main Applications
Altimeter, barometric pressure, tire pressure gauges, intake pressure measurement, air pump pressure gauge, and etc.
Specifications
Model | Measuring Range | Package Form | Pressure Type | Zero Output (mV) | Full Scale | Nonlinear(%FS) |
MSPLA1010150KP | 0-150kPa | LGA | Absolute Pressure | -15~15 | 70~130 | -0.3~0.3 |
MSPLA1010350KP | 0-350kPa | LGA | Absolute Pressure | -15~15 | 70~130 | -0.3~0.3 |
MSPLA1010700KP | 0-700kPa | LGA | Absolute Pressure | -15~15 | 70~130 | -0.3~0.3 |
More pressure ranges can be customized.

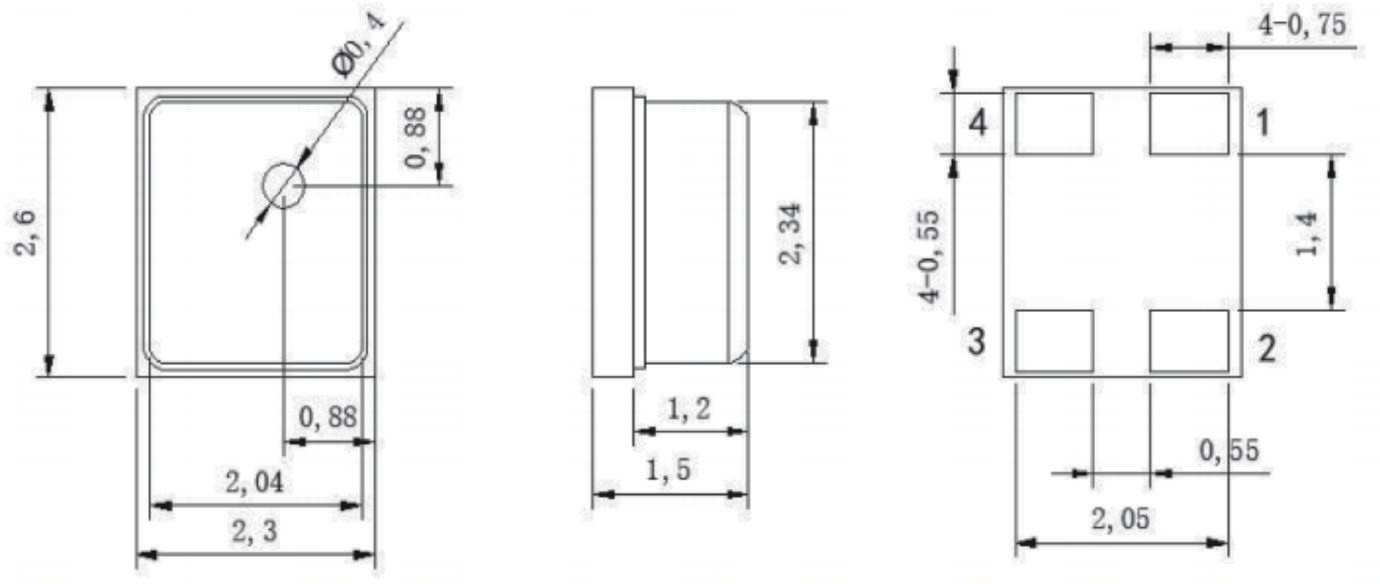

Dimensions and Pin Definitions

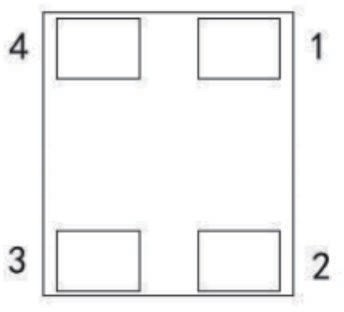

Pid Number | 1 | 2 | 3 | 4 |
Pin Definition 1 | Vo- | Vs+ | Vo+ | GND |
Definition | Negative Output | Power Positive | Positive Output | Power Negative |
